Grafinger - Folding Systems

›

Folding Doors

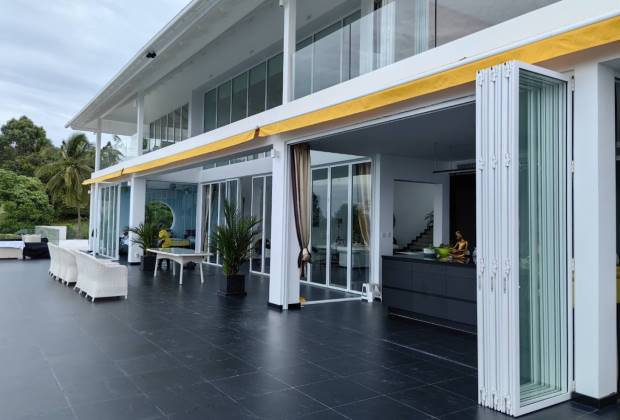

EuroFlex Folding Regular x

[Best Seller] ›Insulate Glass Option ›Outward or Inward Opening ›Multipoint Locking System ›Key Lock Option ›Extra strong corner connections ›Top Supported

PRODUCT CODE	GEUBFR
APPLICATION	WINDOW & DOOR
OPENING DIRECTION	INWARD OR OUTWARD
MOUNTING	FLUSH
MAXIMUM HEIGHT	4.2m
MAXIMUM PANEL WIDTH	1.2m
MAXIMUM PANEL COUNT	UNLIMITED
MAXIMUM WEIGHT PER PANEL	120kg
MULTIPOINT LOCK	STANDARD
DOUBLE GLAZING OPTION	YES
MOSQUITO SCREEN OPTION	PLISSE/FREEDOM

Starting at THB 11,000 / sqm*

Photo Gallery

Inquire

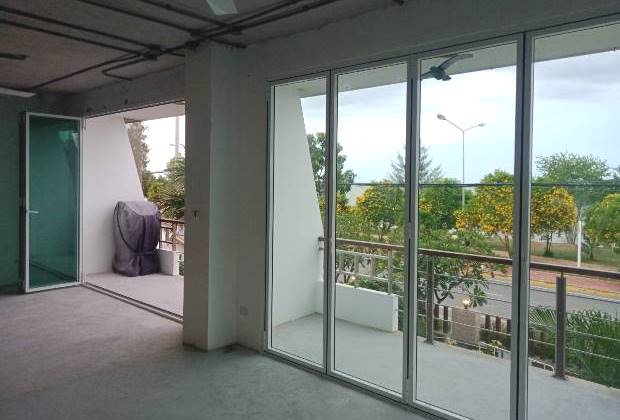

EuroFlex Folding Slimline x

[Slimline] ›Outward or Inward Opening ›Multipoint Locking System ›Extra strong corner connections ›Top Supported

PRODUCT CODE	GEUBFS
APPLICATION	WINDOW & DOOR
OPENING DIRECTION	INWARD OR OUTWARD
MOUNTING	FLUSH
MAXIMUM HEIGHT	3.2m
MAXIMUM PANEL WIDTH	1.0m
MAXIMUM PANEL COUNT	UNLIMITED
MAXIMUM WEIGHT PER PANEL	70kg
MULTIPOINT LOCK	STANDARD
DOUBLE GLAZING OPTION	NO
MOSQUITO SCREEN OPTION	PLISSE/FREEDOM

Starting at THB 11,700 / sqm*

Photo Gallery

Inquire

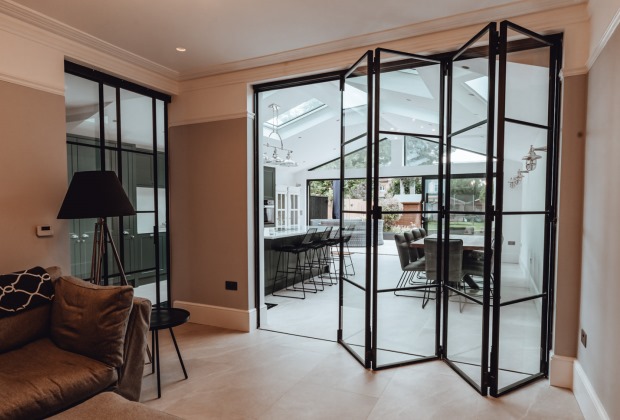

Industrial Foldingx

[Industrial] ›Various Design Options ›Outward or Inward Opening ›Multipoint Locking System ›With or Without Horizontal Bars ›Top Supported

PRODUCT CODE	GEUBFI
APPLICATION	WINDOW & DOOR
OPENING DIRECTION	INWARD OR OUTWARD
MOUNTING	FLUSH
MAXIMUM HEIGHT	3.2m
MAXIMUM PANEL WIDTH	1.0m
MAXIMUM PANEL COUNT	UNLIMITED
MAXIMUM WEIGHT PER PANEL	60kg
MULTIPOINT LOCK	STANDARD
DOUBLE GLAZING OPTION	NO
MOSQUITO SCREEN OPTION	PLISSE/FREEDOM

Starting at THB 13,000 / sqm*

Photo Gallery

Inquire

Further Resources

Download Configuration Guide for Bi-Fold Doors

* All prices are indicative only and subject to terms and conditions.
