Grafinger - Casement Systems

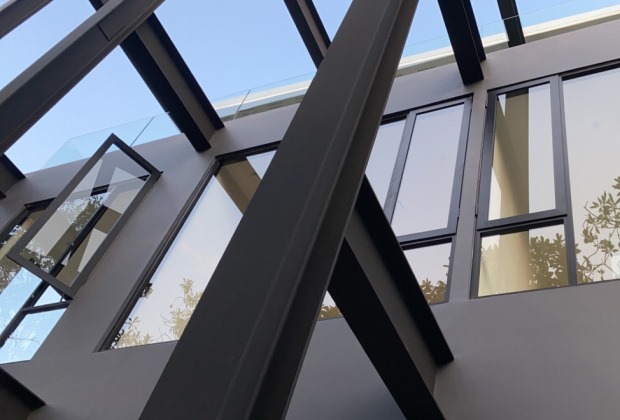

EuroFlex Outward Regular x

[Best Seller] ›Outward Opening ›Rebated System ›Insulate Glass Option ›Multipoint Locking System ›Key Lock Option ›Extra strong corner connections ›Double Layer Soft Gasket

PRODUCT CODE	GEUCOR
APPLICATION	WINDOW & DOOR
OPENING DIRECTION	OUTWARD
MOUNTING	REBATED
SUSPENSION	HINGES OR SCISSORS
MAXIMUM HEIGHT	3.2m
MAXIMUM PANEL WIDTH	1.2m
MAXIMUM PANEL COUNT	UNLIMITED
MAXIMUM WEIGHT PER PANEL	100kg
MULTIPOINT LOCK	STANDARD
DOUBLE GLAZING OPTION	Yes
MOSQUITO SCREEN OPTION	CASEMENT OR PLISSE

Starting at THB 7,300 / sqm*

Like

Photo Gallery

Brochure

Inquire

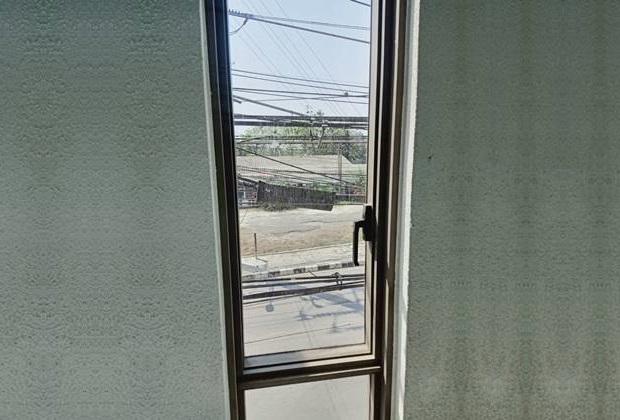

EuroFlex Outward Slim x

[Slimline] ›Outward Opening ›Rebated System ›Extremely Slim ›Multipoint Locking System ›Double Layer Soft Gasket

PRODUCT CODE	GEUCOS
APPLICATION	WINDOW
OPENING DIRECTION	OUTWARD
MOUNTING	REBATED
SUSPENSION	HINGES OR SCISSORS
MAXIMUM HEIGHT	2.6m
MAXIMUM PANEL WIDTH	0.8m
MAXIMUM PANEL COUNT	UNLIMITED
MAXIMUM WEIGHT PER PANEL	60kg
MULTIPOINT LOCK	STANDARD
DOUBLE GLAZING OPTION	No
MOSQUITO SCREEN OPTION	CASEMENT OR PLISSE

Starting at THB 7,800 / sqm*

Like

Photo Gallery

Inquire

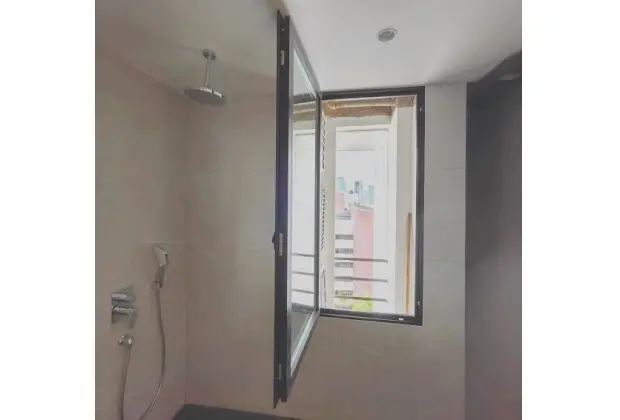

EuroFlex Inward Regularx

[European Style] ›Inward Opening ›Rebated System ›Tilt and Turn Option ›Insulate Glass Option ›Multipoint Locking System ›Double Layer Soft Gasket ›Easy to Clean

PRODUCT CODE	GEUCIR
APPLICATION	WINDOW & DOOR
OPENING DIRECTION	INWARD OR TILT-AND-TURN
MOUNTING	REBATED
SUSPENSION	HINGES
MAXIMUM HEIGHT	2.8
MAXIMUM PANEL WIDTH	1.0m
MAXIMUM PANEL COUNT	UNLIMITED
MAXIMUM WEIGHT PER PANEL	60kg
MULTIPOINT LOCK	STANDARD
DOUBLE GLAZING OPTION	YES
MOSQUITO SCREEN OPTION	CASEMENT OR FIXED

Starting at THB 7,300 / sqm*

Like

Photo Gallery

Inquire

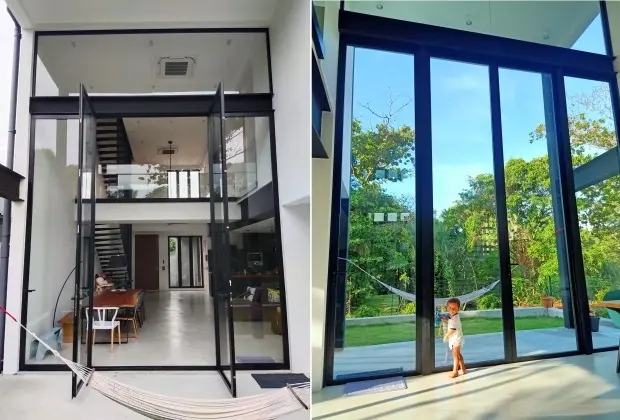

EuroFlex Casement Majesticx

[Oversize] ›Outward or Inward Opening ›Rebated System ›Insulate Glass Option ›Multipoint Locking System ›Key Lock Option ›Extra strong corner connections ›Double Layer Soft Gasket

PRODUCT CODE	GEUCMJ
APPLICATION	DOOR
OPENING DIRECTION	INWARD OR OUTWARD
MOUNTING	REBATED
SUSPENSION	HINGES
MAXIMUM HEIGHT	5.0m
MAXIMUM PANEL WIDTH	1.5m
MAXIMUM PANEL COUNT	2
MAXIMUM WEIGHT PER PANEL	150kg
MULTIPOINT LOCK	STANDARD
DOUBLE GLAZING OPTION	Yes
MOSQUITO SCREEN OPTION	CASEMENT OR PLISSE

Starting at THB 10,500 / sqm*

Like

Photo Gallery

Inquire

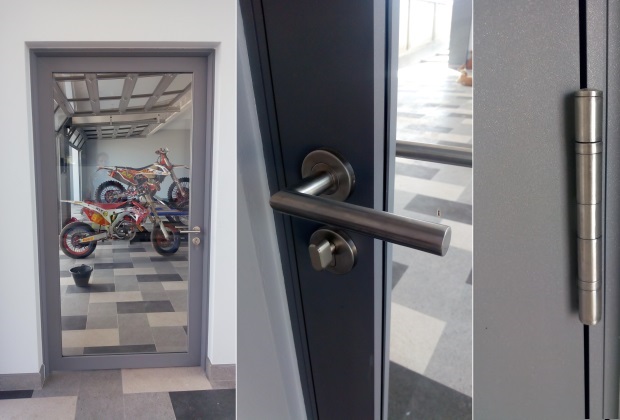

Purity Casement Regularx

[Solid Look] ›Outward or Inward Opening ›Flush Door ›No Frame on the Floor ›Suitable for Pivot Doors ›Insulate Glass Option ›Accomodates most Smartlocks ›Oversize

PRODUCT CODE	GPUCFR
APPLICATION	DOOR
OPENING DIRECTION	INWARD OR OUTWARD
MOUNTING	FLUSH
SUSPENSION	HINGES OR PIVOT
MAXIMUM HEIGHT	4.2m
MAXIMUM PANEL WIDTH	1.5m
MAXIMUM PANEL COUNT	2
MAXIMUM WEIGHT PER PANEL	100kg
MULTIPOINT LOCK	OPTIONAL
DOUBLE GLAZING OPTION	YES
MOSQUITO SCREEN OPTION	PLISSE

Starting at THB 8,500 / sqm*

Like

Photo Gallery

Inquire

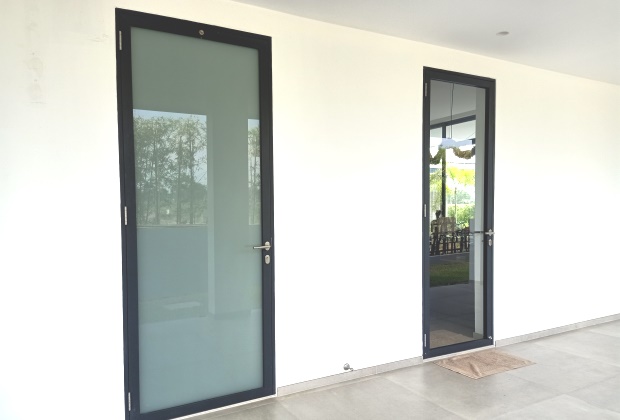

Purity Casement Litex

[Versatile] ›Outward or Inward Opening ›Flush Door ›No Frame on the Floor ›Suitable for Pivot Doors ›Insulate Glass Option ›Accomodates Narrow Smart Locks

PRODUCT CODE	GPUCFL
APPLICATION	DOOR
OPENING DIRECTION	INWARD AND OUTWARD
MOUNTING	REBATED
SUSPENSION	HINGES OR PIVOT
MAXIMUM HEIGHT	3.6
MAXIMUM PANEL WIDTH	1.0m
MAXIMUM WEIGHT PER PANEL	70kg
MULTIPOINT LOCK	OPTIONAL
DOUBLE GLAZING OPTION	YES
MOSQUITO SCREEN OPTION	PLISSE

Starting at THB 6,800 / sqm*

Like

Photo Gallery

Inquire
